380 bubble shell forming machine

380 semi-automatic rotary heat sealing machine
380 bubble shell forming machine

Various types of plastic sheets such as PVC and PET can be sucked and molded into various shapes of cover boxes, widely used for packaging of hardware, toys, stationery, tableware, tools, food, electronics, pharmaceuticals, etc., or for forming thin-walled plastic products.

Applicable to:

This machine is suitable for packaging daily necessities, stationery, hardware, cosmetics, lighting bulbs, and other paper plastic packaging. Packaging materials such as battery, toothbrush, injection, lipstick, pen, glue, socket and bearing can improve the product grade.

Performance characteristics:

This equipment is a new generation of packaging equipment independently developed by the company's scientific research personnel through continuous improvement and innovation. It adopts a human-machine interface, PLC control, encoder support, touch screen operation, automatic counting, precise and convenient, variable frequency and stepless speed regulation, stable machine operation, and can be suitable for various sizes and specifications of paper and plastic packaging, with convenient operation,

Durable, clean and hygienic, and equipped with a safety emergency stop device to ensure emergency measures during production, increasing the operational safety factor, it is currently the most ideal packaging equipment.

Basic functional requirements:

Requirement: The equipment automatically completes functions such as automatic paper card unloading, heat sealing, and finished product conveying and discharging.

Technical and quality standard requirements:

1. The working efficiency of this equipment is set at 10-20 molds per minute. Changing the template for the same specification and model does not affect the accuracy of the equipment, and ensures stable operation of the equipment to meet the technical requirements of the production process. The demander can adjust the equipment speed according to material and quality requirements.

2. This equipment adopts a Japanese made Haoliwang oil-free self-lubricating vacuum pump, and imported cylinders and electrical components are selected to increase the stability performance of the equipment.

3. This device is equipped with a paper card detection function, and automatically stops without paper cards.

4. This device uses a human-machine interface and a PLC control system, and is equipped with functions such as counting, startup password, fault reminder (warning light alarm), maintenance reminder (warning light alarm), etc.

5. Easy to clean residue.

6. Ensure that each robotic arm is correctly placed in the fixture.

7. The first party shall provide paper cards, sheets, products and other raw materials for the second party's trial use.

8. Randomly equipped with spare parts, accessories, and special tools, the quantity shall be provided according to the packing list.

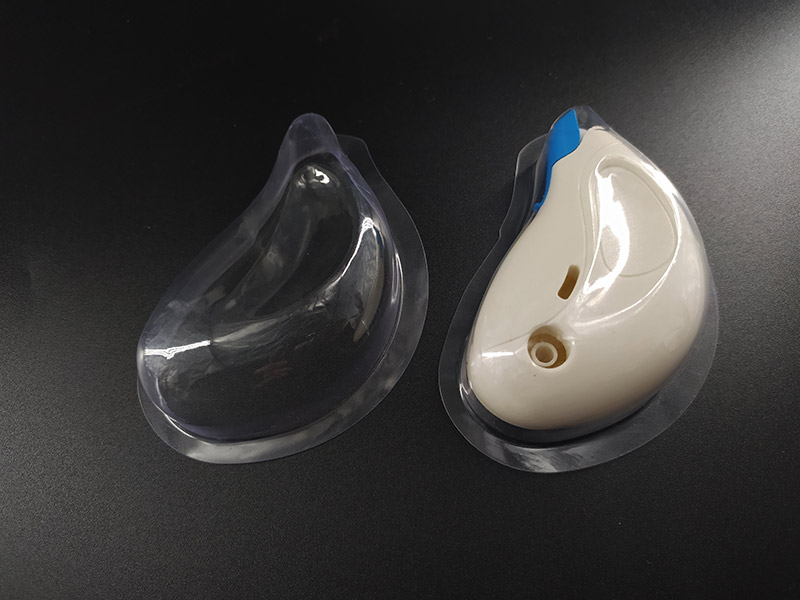

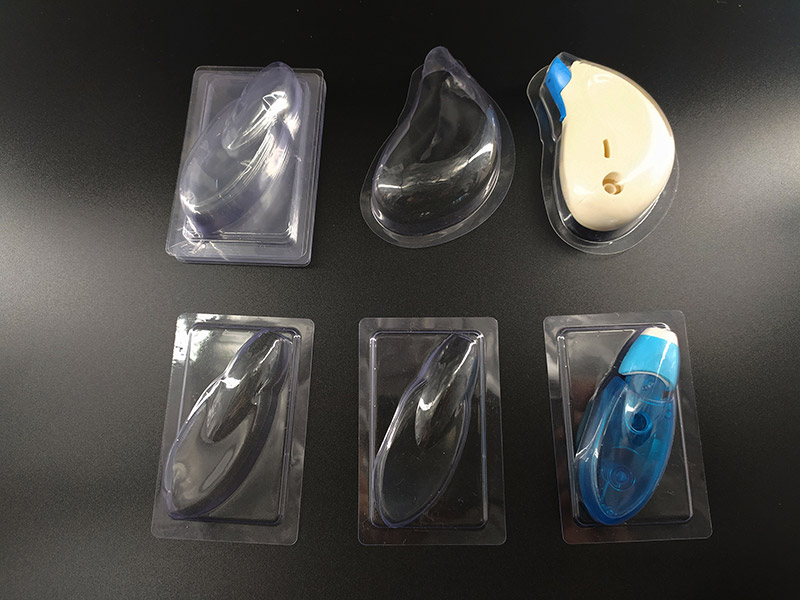

Sample display:
