Water milk filling and capping machine

Water milk filling and capping machine

Product advantages

Container cleaning

Adjustable cup holder

Waiting for liquid level filling

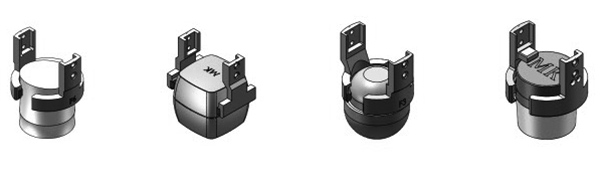

Suitable for internal plugs or pump heads

Simple and rapid production conversion, HMI storage of process parameters

Semi automatic to fully automatic expandable

basic description

The water milk filling machine is a fully servo filling and capping machine, suitable for skincare water and lotion products in the cosmetics industry.

technical specifications

Model: AL60 (fully automatic) AL60S (semi-automatic)

Equipment noise: The tested noise at a distance of one meter is around 65 decibels

Filling speed: ≤ 60 bottles/minute

Working power supply: AC 380V (three-phase five wire), 50 Hz

Filling capacity: 2-400ml

Equipment power: 15 KW

Delivery time: 30 minutes

Gas source pressure: 0.6-0.8 MPa

Filling accuracy: 5-30ml ± 2%; 30-400ml ±0.5%

Gas consumption: 350-550 L/min

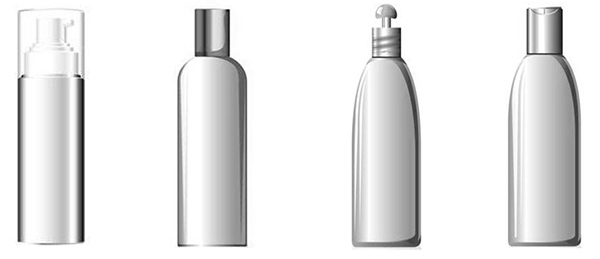

Adapt to product types

Technical equipment dimensions
